Functions/Subroutines
subroutine	flagregions2 (mx, my, mbuff, xlower, ylower, dx, dy, level, t, amrflags, DONTFLAG, DOFLAG)
	Modify array of flagged points to respect minlevels and maxlevels specified by regions. More...

Function/Subroutine Documentation

◆ flagregions2()

subroutine flagregions2	(	integer, intent(in)	mx,
		integer, intent(in)	my,
		integer, intent(in)	mbuff,
		real(kind=8), intent(in)	xlower,
		real(kind=8), intent(in)	ylower,
		real(kind=8), intent(in)	dx,
		real(kind=8), intent(in)	dy,
		integer, intent(in)	level,
		real(kind=8), intent(in)	t,
		real(kind=8), dimension(1-mbuff:mx+mbuff,1-mbuff:my+mbuff), intent(inout)	amrflags,
		real(kind=8), intent(in)	DONTFLAG,
		real(kind=8), intent(in)	DOFLAG
	)

Modify array of flagged points to respect minlevels and maxlevels specified by regions.

This subroutine processes ONE grid associated with this amrflags

Second version with outer loop on regions, should be faster.

On input, amrflags is already set by flagger routine using Richardson extrapolation and/or flag2refine routine, as requested. This routine may change flags only in cells that are (partially) covered by one or more regions.

If any part of a grid cell is covered by one or more regions, then refinement is required to at least the max of all region min_levels and is allowed to at most to the max of all region max_levels.

Note that buffering is done after this, so additional cells may be refined in areas covered by regions that do not allow it!

Definition at line 42 of file flagregions2.f90.

References regions_module::num_regions, and regions_module::regions.

Referenced by bufnst2().


     use regions_module

     implicit none

     ! Subroutine arguments
     integer, intent(in) :: mx,my,level,mbuff
     real(kind=8), intent(in) :: xlower,ylower,dx,dy,t

     ! Flagging
     real(kind=8),intent(inout) :: amrflags(1-mbuff:mx+mbuff,1-mbuff:my+mbuff)
     real(kind=8), intent(in) :: dontflag
     real(kind=8), intent(in) :: doflag

     ! Locals
     integer :: i,j,m,i1,i2,j1,j2
     real(kind=8) :: x_low,y_low,x_hi,y_hi, xupper,yupper
     integer, allocatable :: minlevel(:,:), maxlevel(:,:)

     allocate(minlevel(mx,my), maxlevel(mx,my))

     minlevel = 0
     maxlevel = 0

     xupper = xlower + mx*dx
     yupper = ylower + my*dy

     rloop: do m=1,num_regions
         if (t < regions(m)%t_low .or. t > regions(m)%t_hi) then
             cycle rloop  ! no intersection
         endif

         if (xlower >= regions(m)%x_hi .or. xupper <= regions(m)%x_low) then
             cycle rloop  ! no intersection
         else
             i1 = max(floor((regions(m)%x_low - xlower) / dx) + 1, 1)
             i2 = min(floor((regions(m)%x_hi -xlower) / dx) + 1, mx)
         endif

         if (ylower >= regions(m)%y_hi .or. yupper <= regions(m)%y_low) then
             cycle rloop  ! no intersection
         else
             j1 = max(floor((regions(m)%y_low - ylower) / dy) + 1, 1)
             j2 = min(floor((regions(m)%y_hi - ylower) / dy) + 1, my)
         endif

         do j=j1,j2
             do i=i1,i2
                 minlevel(i,j) = max(minlevel(i,j), regions(m)%min_level)
                 maxlevel(i,j) = max(maxlevel(i,j), regions(m)%max_level)
             enddo
          enddo
     enddo rloop

     do j=1,my
         do i=1,mx
          if (minlevel(i,j) > maxlevel(i,j)) then
               write(6,*) '*** Error: this should never happen!'
               write(6,*) '*** minlevel > maxlevel in flagregions'
               stop
          endif

          if (maxlevel(i,j) /= 0) then
              ! this point lies in at least one region, so may need
              ! to modify the exisiting flag at this point...
              if (level < minlevel(i,j)) then
                  ! Require refinement of this cell:
                  amrflags(i,j) = doflag
              else if (level >= maxlevel(i,j)) then
                  ! Do not refine of this cell:
                  amrflags(i,j) = dontflag
              ! else leave amrflags(i,j) alone.
              endif
          endif

         enddo
     enddo

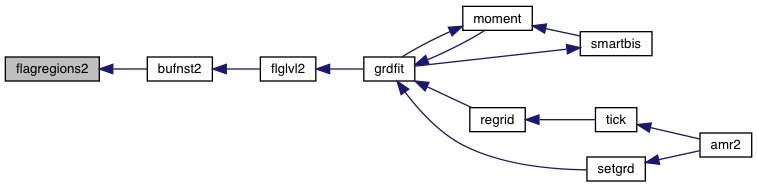

Here is the caller graph for this function:
