Wave tank simulation compared to Matsuyama et al. (2007) experiment

This example uses the wave tank dimensions specified for Case 024 in

A Study of Tsunami Wave Fission in an Undistorted Experiment,
by M. Matsuyama, M. Ikeno, T. Sakiyama, and T. Takeda,
Pure Appl. Geophys. 164 (2007), pp. 617-631.
DOI 10.1007/s00024-006-0177-0

Boundary conditions are implemented in bc1.f that mimic the wave maker.

This example is set up to use the Boussinesq equations, and reproduces the break up of the dispersive wave into a train of solitary waves.

The file make_celledges.py sets up the domain and computational grid. A piecewise linear topography is defined by specifying the topography z value at a set of nodes x in the xzpairs list.

A nonuniform grid with mx grid cells is used with cell widths related to the still water depth in such a way that the Courant number is roughly constant in deep water and onto the shelf, and with uniform grid cells near shore and onshore where the water depth is less than hmin.

Executing make_celledges.py creates a file celledges.data that contains the cell edges. This file must be created before running GeoClaw.

In GeoClaw a mapped grid is used with a mapc2p function specified in setrun.py that is generated from the celledges.data. The computational grid specified in setrun.py is always 0 <= xc <= 1. Set:

rundata.grid_data.grid_type = 2

to indicate a mapped grid.

In this example the physical x coordiate is in meters, set by specifying:

rundata.geo_data.coordinate_system = 1

To use:

make topo     # executes make_celledges.py
make .output  # compile, make data, and run
make .plots   # to create _plots (or plot interactively with Iplotclaw)

python plot_gauges.py  # to create a plot of gauges to compare to paper

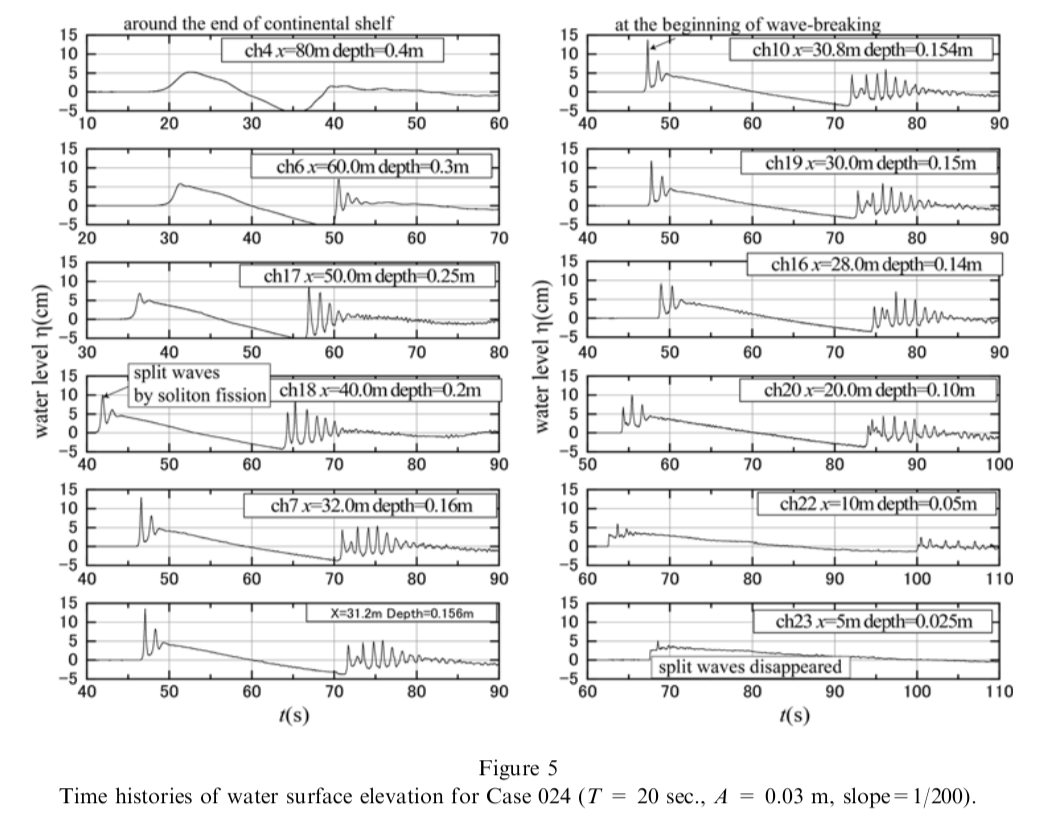

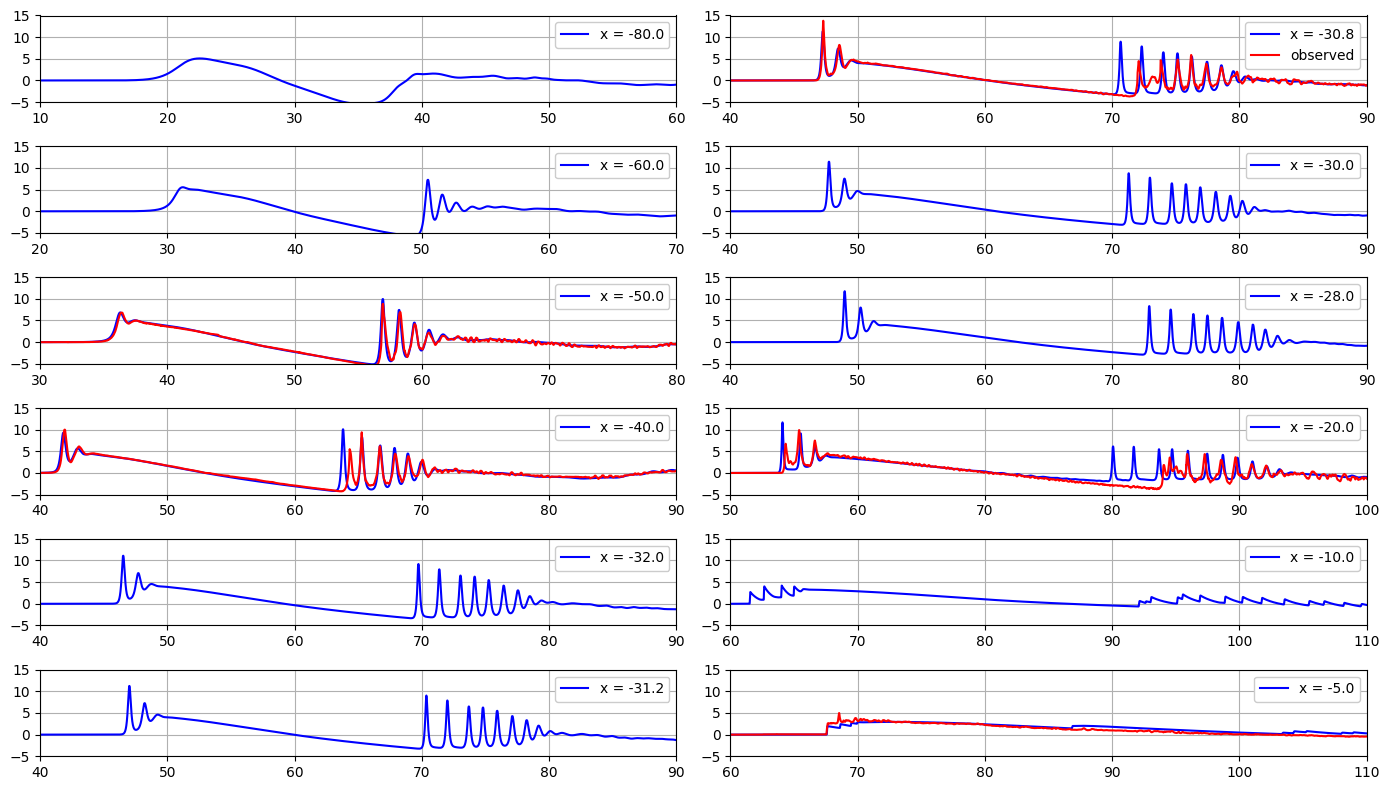

The plot_gauges.py script should create a plot similar to GeoClawFigure5.png that can be compared to Figure 5 in the paper.

The gauge plot produced also includes wave tank observations (as a red curve) for some gauges. This data comes from the file data_wavegauge.csv (kindly provided by Prof. Matsuyama).
