PyClaw Geometry

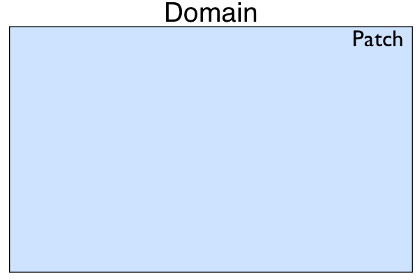

The PyClaw geometry package contains the classes used to define the geometry of a Solution object. The base container for all other geometry is the Domain object. It contains a list of Patch objects that reside inside of the Domain.

../_images/domain_structure_1.png

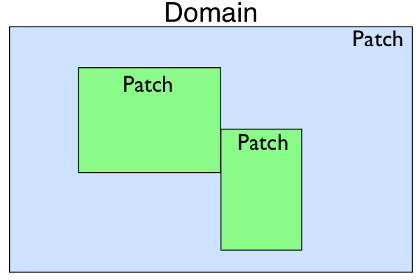

Patch represents a piece of the domain that could be a different resolution than the others, have a different coordinate mapping, or be used to construct complex domain shapes.

../_images/domain_structure_2.png

It contains Dimension objects that define the extent of the Patch and the number of grid cells in each dimension. Patch also contains a reference to a nearly identical Grid object. The Grid object also contains a set of Dimension objects describing its extent and number of grid cells. The Grid is meant to represent the geometry of the data local to the process in the case of a parallel run. In a serial simulation the Patch and Grid share the same dimensions.

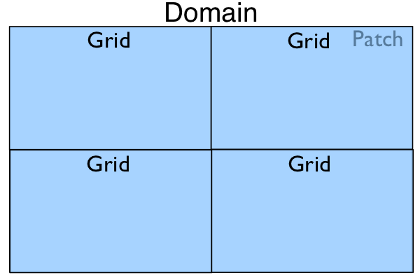

In the case where only one Patch object exists in a Domain but it is run with four processes in parallel, the Domain hierarchy could look like:

../_images/domain_structure_3.png

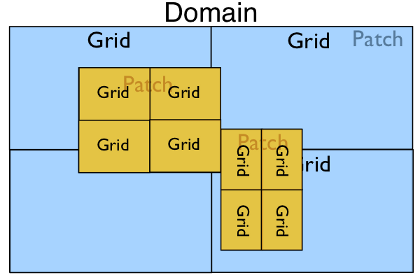

In the most complex case with multiple patches and a parallel run we may have the following:

../_images/domain_structure_5.png

Serial Geometry Objects

pyclaw.geometry.Domain
