errf1.f File Reference

Go to the source code of this file.

Functions/Subroutines
subroutine	errf1 (rctfine, nvar, rctcrse, mptr, mi2tot, mj2tot, mitot, mjtot, rctflg, mibuff, mjbuff)

Function/Subroutine Documentation

errf1()

subroutine errf1	(	dimension(nvar,mitot,mjtot)	rctfine,
			nvar,
		dimension(nvar,mi2tot,mj2tot)	rctcrse,
			mptr,
			mi2tot,
			mj2tot,
			mitot,
			mjtot,
		dimension(mibuff,mjbuff)	rctflg,
			mibuff,
			mjbuff
	)

Definition at line 6 of file errf1.f.

References amr_module::badpt, amr_module::cornxlo, amr_module::cornylo, amr_module::edebug, amr_module::eprint, amr_module::goodpt, amr_module::hxposs, amr_module::hyposs, amr_module::iorder, amr_module::nestlevel, amr_module::nghost, amr_module::node, amr_module::outunit, amr_module::possk, amr_module::rnode, amr_module::timemult, and amr_module::tol.

Referenced by errest().

      use amr_module
      implicit double precision (a-h,o-z)


      dimension  rctfine(nvar,mitot,mjtot)
      dimension  rctcrse(nvar,mi2tot,mj2tot)
      dimension  rctflg(mibuff,mjbuff)
c
c
c ::::::::::::::::::::::::::::: ERRF1 ::::::::::::::::::::::::::::::::
c
c  Richardson error estimator:  Used when flag_richardson is .true.
c  Compare error estimates in rctfine, rctcrse,
c  A point is flagged if the error estimate is greater than tol
c  later we check if its in a region where its allowed to be flagged
c  or alternatively required.
c
c ::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::
c

c
      time  = rnode(timemult, mptr)
      xleft = rnode(cornxlo,mptr)
      levm  = node(nestlevel, mptr)
      hx    = hxposs(levm)
      ybot  = rnode(cornylo,mptr)
      hy    = hyposs(levm)
      dt    = possk(levm)
      numsp = 0

      errmax = 0.0d0
      err2   = 0.0d0
c     order  = dt*dble(2**(iorder+1) - 2)
      order  = dble(2**(iorder+1) - 2)
c
      if (.not. (edebug)) go to 20
         write(outunit,107) mptr
 107     format(//,' coarsened grid values for grid ',i4)
         do 10 jj = nghost+1, mj2tot-nghost
            j = mj2tot + 1 - jj
            write(outunit,101) (rctcrse(1,i,j),
     .                          i = nghost+1, mi2tot-nghost)
10       continue
         write(outunit,108) mptr
 108     format(//, ' fine grid values for grid ',i4)
         do 15 jj = nghost+1, mjtot-nghost
            j = mjtot + 1 - jj
            write(outunit,101) (rctfine(1,i,j),i=nghost+1,mitot-nghost)
15       continue
101      format(' ',40e11.3)
c
c zero out the exterior locations so they don't affect err.est.
c
 20   continue
      jfine = nghost+1
      do 35  j = nghost+1, mj2tot-nghost
      yofj  = ybot + (dble(jfine) - .5d0)*hy
      ifine = nghost+1
c
      do 30  i  = nghost+1, mi2tot-nghost
          rflag = goodpt
          xofi  = xleft + (dble(ifine) - .5d0)*hx
          term1 = rctfine(1,ifine,jfine)
          term2 = rctfine(1,ifine+1,jfine)
          term3 = rctfine(1,ifine+1,jfine+1)
          term4 = rctfine(1,ifine,jfine+1)
c         # divide by (aval*order) for relative error
          aval  = (term1+term2+term3+term4)/4.d0
          est   =  dabs((aval-rctcrse(1,i,j))/ order)
          if (est .gt. errmax) errmax = est
          err2 = err2 + est*est
c         write(outunit,102) i,j,est,rctcrse(1,i,j)
 102      format(' i,j,est ',2i5,2e15.7)
c          write(outunit,104) term1,term2,term3,term4
 104      format('   ',4e15.7)
c         rctcrse(2,i,j) = est
c
          if (est .ge. tol) then
             rflag  = badpt
          endif
      rctcrse(1,i,j) = rflag
      ifine = ifine + 2
 30   continue
      jfine = jfine + 2
 35   continue
c
c  print out intermediate flagged rctcrse (for debugging)
c
      if (eprint) then
         err2 = dsqrt(err2/dble((mi2tot-2*nghost)*(mj2tot-2*nghost)))
         write(outunit,103) mptr, levm, time,errmax, err2
 103     format(' grid ',i4,' level ',i4,' time ',e12.5,
     .          ' max. error = ',e15.7,' err2 = ',e15.7)
         if (edebug) then
           write(outunit,*) ' flagged points on coarsened grid ',
     .                      '(no ghost cells) for grid ',mptr
           do 45 jj = nghost+1, mj2tot-nghost
              j = mj2tot + 1 - jj
              write(outunit,106) (nint(rctcrse(1,i,j)),
     .                            i=nghost+1,mi2tot-nghost)
106           format(1h ,80i1)
45         continue
         endif
      endif
c
      jfine   = nghost+1
      do 70 j = nghost+1, mj2tot-nghost
      ifine   = nghost+1
      do 60 i = nghost+1, mi2tot-nghost
         if (rctcrse(1,i,j) .eq. goodpt) go to 55
c           ## never set rctflg to good, since flag2refine may
c           ## have previously set it to bad
c           ## can only add bad pts in this routine
            rctflg(ifine,jfine)    = badpt
            rctflg(ifine+1,jfine)  = badpt
            rctflg(ifine,jfine+1)  = badpt
            rctflg(ifine+1,jfine+1)= badpt
 55       ifine   = ifine + 2
 60     continue
        jfine   = jfine + 2
 70   continue
c

      if (eprint) then
         write(outunit,118)
 118     format(' on fine grid (no ghost cells) flagged points are')
         if (edebug) then
          do 56 jj = nghost+1, mjtot-nghost
           j = mjtot + 1 - jj
           write(outunit,106)
     &      (nint(rctflg(i,j)),i=nghost+1,mitot-nghost)
 56       continue
        endif
      endif

      return

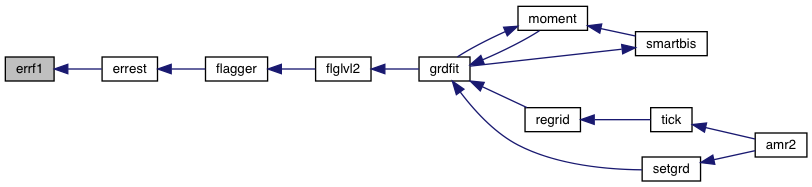

Here is the caller graph for this function:
